200B 200B Excavator Swing Drive Swing Motor Assembly Spare Parts
| |
| Model:E200B 200B |
| Brand: TGFQ |
| Outer Packing: Wooden case |
| Part Number: 096-4393 |
| egory: Excavator Swing Drive Spare Parts |
| Motor No.: SG08 |
| Package Size: 50*50*80 CM |
| Means of Transport: By Sea, By Air or By Express |
| Guarantee: We will check the starter motor and send detail pictures to buyer to confirm before shipping. |

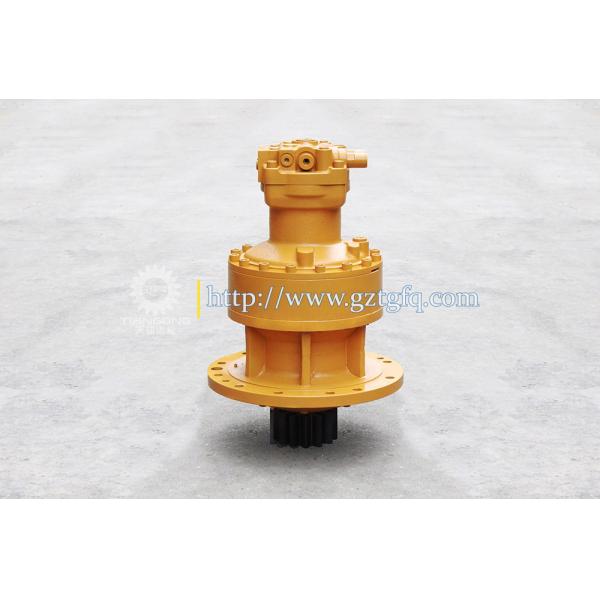

E200B Excavator Swing Drive Assembly Photo:

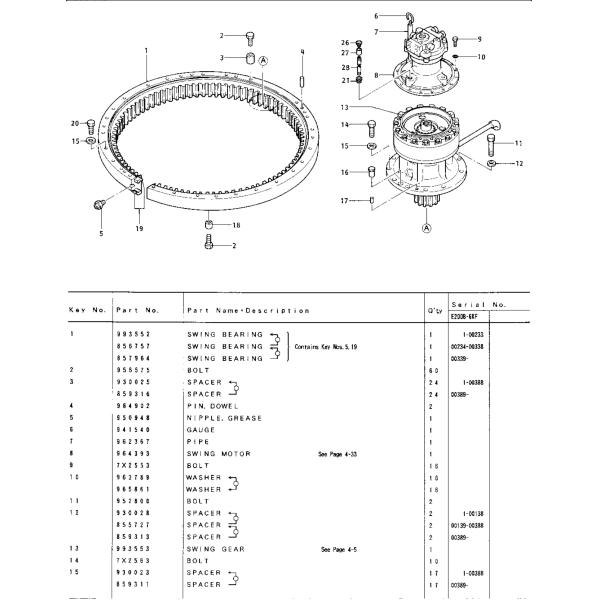

E200B Excavator Swing Drive Assembly Drawing:
| Pos. | Part No | Qty | Parts Name |
| 1 | 099-3552 | [1] | SWING BEARING |
| | 085-6757 | [1] | SWING BEARING |
| | 085-7964 | [1] | SWING BEARING |
| 2 | 095-6575 | [60] | BOLT |
| 3 | 093-0025 | [24] | SPACER |
| | 085-9316 | [24] | SPACER |
| 4 | 096-4902 | [2] | PIN, DOWEL |
| 5 | 095-0948 | [1] | NIPPLE, GREASE |
| 6 | 094-1540 | [1] | GAUGE |
| 7 | 096-2367 | [1] | PIPE |
| 8 | 096-4393 | [1] | SWING MOTOR |
| 9 | 7X-2553 | [16] | BOLT |
| 10 | 096-3789 | [16] | WASHER |
| | 096-5861 | [16] | WASHER |
| 11 | 095-2800 | [2] | BOLT |
| 12 | 093-0028 | [2] | SPACER |
| | 085-5727 | [2] | SPACER |
| | 085-9313 | [2] | SPACER |
| 13 | 099-3553 | [1] | SWING GEAR |
| 14 | 7X-2563 | [10] | BOLT |
| 15 | 093-0023 | [17] | SPACER |
| | 085-9311 | [17] | SPACER |
Troubleshooting-General Precautions:
• If you experience an abnormal operation of the Track Drive Motor, think all working circuit elements that could potentially effect the Track Drive Motor's performance.
• If deemed to disassemble the Track Drive Motor, it is critical to do so in a clean environment, to ensure no miss or broken during the reassembly process.
• When disassembly, pls note that the inner hydraulic components of the Track Drive Motor are precision manufactured and as a result must be handled with care to avoid irreversible damage.
OUR STOCK
We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage.
FAQ:
Q: What's the order process?
A: 1)Inquiry---provide us all clear requirements (total qty and package details).
2)Quotation---official quotation from with all clear specifiions from our professional team.
3)Production---mass production. 5)Shipping---by sea or by air.
Q: How do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.
Q: Do you have a factory?
A: Yes, we have our own factory and have 23 years of production experience in the excavated gear industry.
